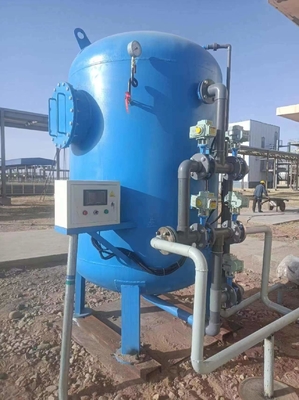

0.5 MPa 3600mm Stainless Steel Activated Carbon Sand Filter 100T/H For Water Purification And Industrial Process

Place of Origin Tai'an, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T/H-100T/H
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Pre-treatment For Producing Purified Water, Boiler Feedwater, Industrial Process Water, And Drinking Water. Product Information Quartz Sand Filtration, Activated Carbon Filtration, Manganese Sand Filter, Shallow Bed Sand Filtration, Self-cleaning Filtration, Precision Filtration
Purpose Production Of Purified Water, Boiler Feedwater, Industrial Process Water, And Drinking Water Filtration System Brand Tonglida
Material Stainless Steel, Carbon Steel, Fiberglass
Highlight

activated carbon sand filter 100t/h

,

stainless steel activated carbon sand filter

,

3600mm activated sand filter
Leave a Message
Product Description





Product Description:



The filtration system is composed of several types of filters, which includes quartz sand filters, activated carbon filters, manganese sand filters, shallow bed sand filters, self-cleaning filters, and precision filters. The filter media and filter cartridges with different degrees of precision can be selected according to the user's requirements. When subjected to a certain pressure, the system efficiently removes suspended solids, organic matter, colloidal particles, and other impurities to eliminate odors and colors from turbid water. The ultimate goal of the system is to provide high-efficiency filtration and purification of water quality.

This type of filtration equipment has significantly broadened its scope of applications and is now being widely used in various industries such as power, electronics, beverages, tap water treatment, petroleum, chemicals, metallurgy, textiles, papermaking, food, swimming pools, and municipal engineering. This equipment is essential when dealing with industrial water, domestic water, circulating water, and wastewater treatment.





Project Name φ200 φ300 φ400 φ500 φ600 φ800 φ1000 φ1200 φ1400 φ1400 φ1500 φ1600 φ1800 φ2000 φ2200 Unit
Filter processing 0.5 1 2 4 6 8-10 12-16 20-25 30 35 40 50 60 75-80 100 t/h
Working pressure 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 MPa
Operating temperature 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 0C
Filter area 0.03 0.07 0.13 0.2 0.28 0.5 0.785 1.13 1.54 1.54 1.77 2.01 2.54 3.14 3.8 m2
Filter layer height 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1300 1300 1300 mm
Total height 1600 1800 1800 2200 2200 2400 2500 2600 2700 2700 2800 2900 3200 3400 3600 mm
Raw water inlet diameter 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200 mm
Clean water outlet diameter 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200 mm
Backwash water inlet diameter 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200 mm
Compressed air inlet diameter               25 25 25 32 32 32 32 32 mm
Water drainage diameter for normal washing 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200 mm
Backwash water drainage diameter 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200 mm
Equipment weight 235 330 415 650 800 1300 2047 2849 3549 4090 4690 5800 6680 8530 9600 kg



Features:



Pre-treatment is an essential step in the production of various types of high quality water, including purified water, boiler feedwater, industrial process water, and drinking water. This process helps to remove impurities and contaminants that can affect the quality and safety of water.

Purified water is often used in laboratory or medical settings, where its high level of purity is necessary. Boiler feedwater needs to be free from impurities to prevent corrosion and improve boiler efficiency. Industrial process water may be used for a variety of purposes, and its quality and purity requirements will depend on the specific application. Drinking water must meet rigorous safety and quality standards to ensure that it is safe for consumption.

Pre-treatment can involve a range of techniques and processes, including sedimentation, filtration, chemical treatments, and disinfection. These methods help to remove suspended particles, bacteria, viruses, and dissolved substances such as salts or minerals. The specific pre-treatment methods used will depend on the source water and the quality requirements of the final water product.



Technical Parameters:



Efficient Filtration

Meeting on-site filtration requirements is essential for effectively removing impurities, including suspended solids, organic matter, colloidal particles, and microorganisms, to improve water quality. Different filter media can be selected to achieve this purpose.


Biological Purification

Biological purification further enhances the degradation of organic matter and harmful substances in the water, thereby improving the water's purification effect.


Backwash Regeneration

The backwashing and regeneration process can restore the filtering performance of the quartz sand, enabling continuous water purification.


Space-saving

Our compact structure and small footprint can effectively save valuable space.


Easy Installation

Our product offers simple operation and easy installation, and it can be directly connected to the inlet and outlet water pipes for immediate use. With a long service life, our product can help reduce operating costs.


Strong Adaptability

Our product can adapt to different water qualities and quantities, exhibiting good adaptability to meet customer needs.



Applications:



There are various applications for water filtration to meet industrial needs, such as protecting nozzles and heat exchange station water.

Industries like steel, metallurgy, papermaking, power generation, petrochemicals, food, and air conditioning systems, require filtration for their circulating water.

Raw water treatment is also an important aspect of water filtration. This includes the filtration of surface water, rivers, lakes, and seawater.

Irrigation filtration is essential in agriculture and other fields, such as parks, municipal water supplies, and golf courses.

Water filtration is also crucial in aquaculture, swimming pools, and water parks. Therefore, water filtration is a necessary aspect of many industries, including power, electronics, beverages, petroleum, chemicals, metallurgy, textiles, papermaking, food, swimming pools, and municipal engineering. It involves filtration processes for industrial water, domestic water, circulating water, and wastewater treatment.
