Heavy Duty Electronic Weighbridge Tonglida Up to 200t Capacity Automatic Vehicle Identification

Place of Origin Taian, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 2T-100T
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Automatic Vehicle Identification, Intelligent Voice And Digital Display Length Range 4m~35m
Width Range 2m~4.5m Maximum Weighing Capacity 10t~200t
Accuracy Class Class III Origin Taian, Shandong
Brand Tonglida
Highlight

200t electronic weighbridge

,

200t computerized weighbridge

,

automatic electronic weighbridge
Leave a Message
Product Description





Product Description:



An electronic scale, which is also known as an electronic weighbridge, is a professional tool that uses the principle of strain gauge measurement for accurate weighing. It is a large-scale weighing equipment offered by our company, which includes electronic scales, mobile electronic scales, and electronic truck scales.

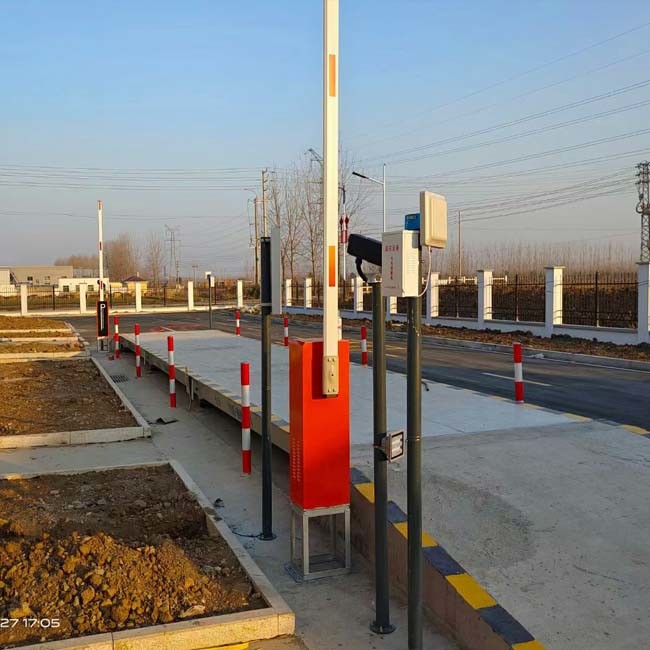

Our system integrates various features such as video surveillance, large-screen display, automatic vehicle identification, intelligent voice, traffic light barrier control, infrared grating positioning, and host computer systems. It ensures automatic and reliable collection of measurement data, automatic determination of tare weight, automatic guidance, automatic processing, and automatic control throughout the weighing process. This greatly reduces the workload and disadvantages associated with manual operations while increasing the system's level of informatization and automation.

During operation, when a vehicle is driven onto the platform, the weight of the vehicle is transferred to the weighing sensors through the load-bearing structure under the influence of gravity. This deformation in the elastic material of the sensors leads to an unbalanced state in the strain gauge bridge attached to the elastic material. The output signal from the strain gauge bridge is proportional to the weight of the vehicle and is then amplified by a linear amplifier, converted into a digital signal through an A/D converter, processed by a processor, and displayed as weight data.



Features:



Automatic vehicle identification, intelligent voice and digital display



Technical Parameters:



The system automatically collects data, eliminating the need for manual intervention and improving data collection accuracy and real-time nature. This enhances efficiency and accelerates weighing processes.

Standardized weighing procedures close loopholes, effectively preventing cheating. With centralized management of truck scales, one person can manage multiple scales, which reduces the number of scale operators, thereby lightening the burden on the company.

Using a self-service man-machine interaction system replaces the weighbridge office, which saves construction costs. Centralized installation of equipment facilitates management and prevents human sabotage.

With remote operation, scale operators can work remotely, achieving unattended operation of the truck scales, avoiding direct contact between drivers and scale operators, and improving the working environment for scale operators.

This system enables remote card reading, allowing card reading during vehicle movement. Ceramic RFID cards with anti-tampering features can eliminate cheating by preventing card swapping or license plate manipulation.

Ultimately, this system enhances the management of weighing vehicles, achieving seamless integration between the vehicle and the card. Additionally, customizable additional features can be added based on enterprise requirements, allowing seamless integration with production systems and other systems.



Applications:



Logistics Industry

Logistics centers play a crucial role in the supply chain process. To ensure the shipment of products to their intended destination, incoming and outgoing goods must be weighed accurately and efficiently. The use of electronic truck scales eliminates the need for manual calculations and, instead, provides fast and precise measurements. This enhances the efficiency of logistics operations, which translates to improved profits.



Freight Industry

The transportation of goods relies on freight companies to go from one point to another. Loading and unloading are two of the most critical aspects of this process, and weighing is an integral part of it. Electronic truck scales come in handy to simplify this process and reduce workload. By eliminating the need for manual calculations, it ensures that the weight of the goods is accurate and easily accessible. This improves the speed and reliability of the transportation process.


Coal Industry

Coal enterprises play a major role in the energy sector and need to weigh coal frequently. The use of electronic truck scales allows for efficient and accurate measurements, which ensures profitability. By eliminating manual calculations and giving precise measurements, it also reduces the chance of errors, saving resources and labor costs.


Building Materials Industry

Building materials companies are essential to the construction industry. Efficient delivery of transported materials is critical to avoiding delays and keeping costs low. Electronic truck scales simplify the weighing process and provide accurate measurements. This optimization of the transportation process speeds up deliveries and reduces labor and resource costs.


Chemical Industry

The chemical industry uses raw materials that are often hazardous and require accurate weighing equipment to avoid accidents and material wastage. Electronic truck scales serve as a valuable tool in this process and reduce the chance of human errors. By giving accurate measurements and simplifying the weighing process, it enhances production efficiency and helps maintain a safe work environment.
