Customization Condensate Water Recovery Device High Recovery Capacity For Food Industry

Place of Origin Tai'an, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T/H-100T/H
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Anti-cavitation, Energy-saving, Environmentally Friendly Application Fields Papermaking, Chemical Industry, Food Industry, Pharmaceuticals, Grain And Oil Processing, Rubber Industry，etc.
Recovery Capacity 1-100T/H Certifications ISO9001 Quality System Certification
Control Mode Fully Automatic Control, PLC Control Drive Mode Electric, Pneumatic
Customization Customization Supported Material Carbon Steel, Stainless Steel
Highlight

customization condensate water recovery device

,

customization condensate water recovery system

,

industry condensate water recovery device
Leave a Message
Product Description





Product Description:

The condensate water recovery device is designed to cater to the different needs of users, and can be either steam-driven or electric-driven, based on specific user requirements. Once recovered, the condensate water can be directly returned to the boiler or directed to a location designated by the user.

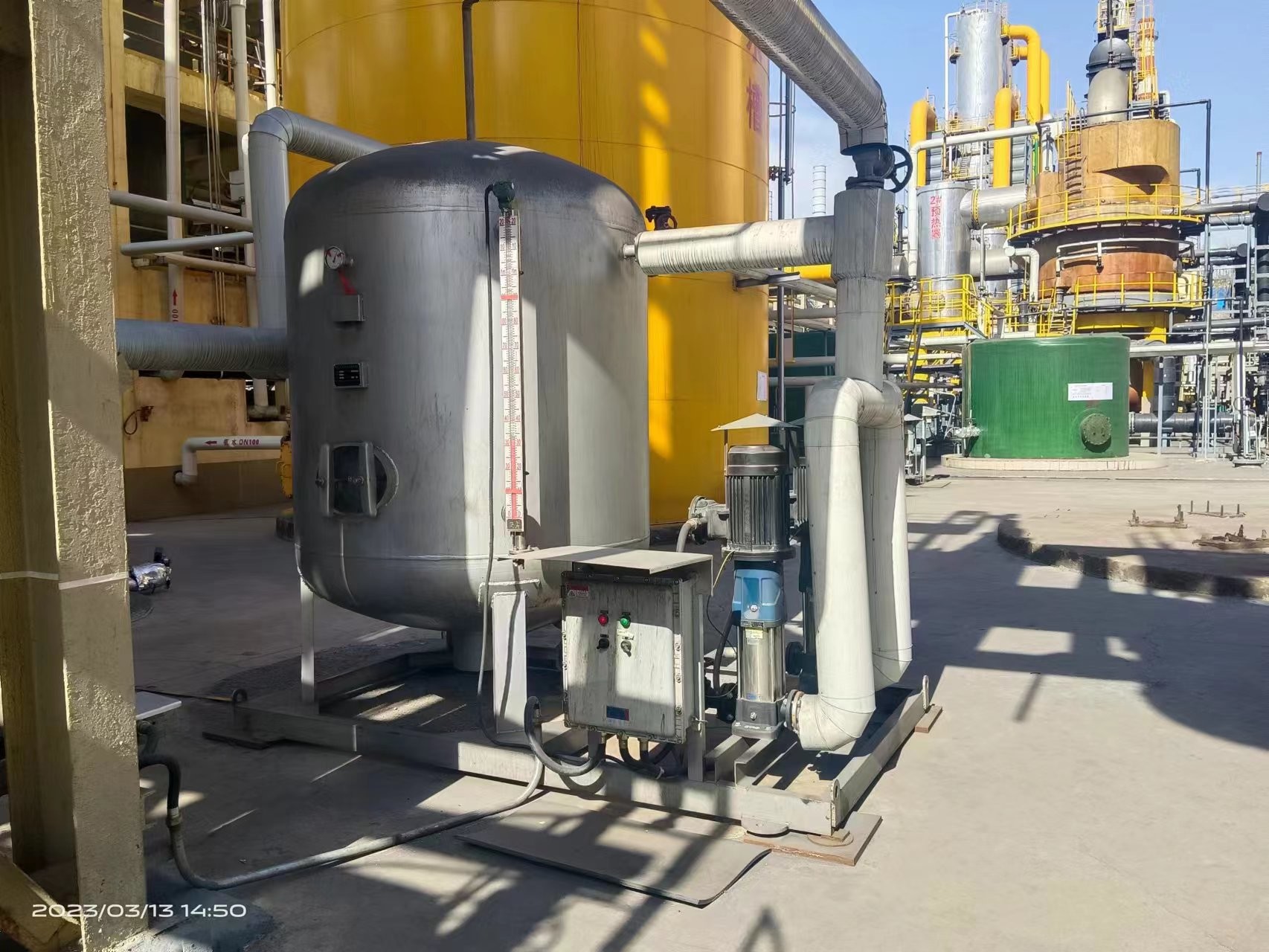

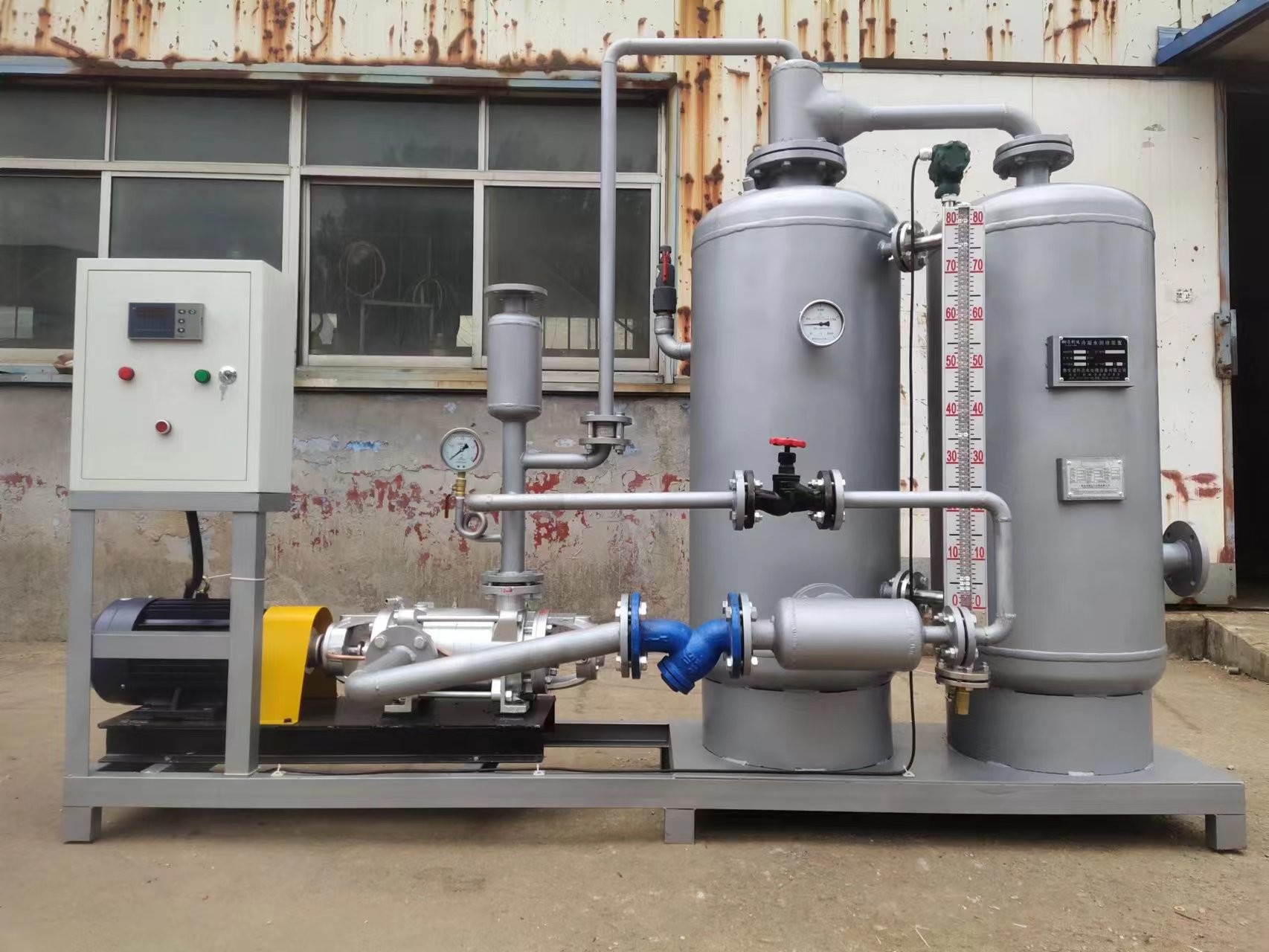

The device mainly comprises of several components including a dedicated condensate water recovery pump, motor, recovery tank, cavitation elimination device, liquid level sensor, magnetic flip liquid level gauge, pressure gauge, filter, pressure regulating valve, blowdown valve, control panel and others.

The steam condensate water first enters the tank via a steam trap, where steam and water are separated as per requirements. As soon as the liquid level sensor detects a high liquid level in the tank, it sends a high-level signal to the control panel. This, in turn, enables the condensate water recovery pump.

The high-temperature condensate water and a small quantity of secondary steam are carried through the cavitation elimination device and filter via the pump and channeled into the water tank or the exact location specifically assigned by the customer. This completes the procedure of recovering steam condensate water.

In case the liquid level sensor detects a low liquid level in the tank, it sends a low-level signal to the control panel, which then immediately turns off the condensate water recovery pump. Additionally, the recovery device functions in a fully automatic control mode, with dual pumps available in backup mode, and automatically switches between the two. Starting the device is an easy process that requires only the power to be turned on.

Model number Recovery volume Tank diameter Weight Equipment dimensions
TLD-1T/H-A 1T/H 450 360kg 1300*500*1600
TLD-2T/H-A 2T/H 500 550kg 1600*700*1600
TLD-4T/H-A 4T/H 550 750kg 1500*600*1700
TLD-6T/H-A 6T/H 600 880kg 1750*800*1700
TLD-8T/H-A 8T/H 800 900kg 1800*900*2100
TLD-10T/H-A 10T/H 1000 980kg 1900*1100*2200
TLD-2T/H-B 2T/H 350 450kg 2300*500*1900
TLD-4T/H-B 4T/H 450 800kg 2700*1100*2000
TLD-6T/H-B 6T/H 550 880kg 2900*1200*2000
TLD-8T/H-B 8T/H 800 1000kg 3200*1300*2100



Features:

Introducing Our Revolutionary Product!

Introducing our revolutionary product that is designed to eliminate cavitation, reduce energy consumption, and promote a more sustainable environment.

Gone are the days of worrying about cavitation damaging your equipment and costing you time and money. Our anti-cavitation solution is scientifically proven to prevent cavitation from occurring, ensuring that your equipment remains in excellent condition for longer periods of time.

But it doesn't stop there. Our product is also engineered to maximize energy efficiency and save you money on operational costs. By reducing the amount of energy required to operate your equipment, you can rest assured that your bottom line will be positively impacted.

We are also passionate about doing our part to protect the environment. Our product is formulated with eco-friendly materials and technology that does not harm the environment. You can trust that your business is using environmentally conscious products that are both effective and safe.



Applications:

Industrial Applications of Closed-Loop Condensate Water Recovery

Condensate Water Recovery Device is a technology that is widely used in various industrial enterprises such as papermaking, chemical, petroleum, printing and dyeing, textile, brewing, rubber, and other industries that have steam heating systems. The closed-loop system can recover the condensate water generated by the steam systems, which can be reused for steam generation.

This technology is essential for these industries as it helps reduce water consumption and the discharge of wastewater. By recovering the condensate water, these industries can save water resources while reducing their operating expenses.

Civil Applications of Closed-Loop Condensate Water Recovery

Aside from its industrial applications, Condensate Water Recovery Device can also be utilized in civil buildings such as hotels and hospitals. It is a convenient and effective system that can replace conventional open condensate water tanks.

Condensate Water Recovery Device can easily convert the condensate water generated by the indirect heat exchange system into a closed-loop recovery system. This means that the condensate water can be reused, reducing water consumption and wastewater discharge. By implementing this technology in civil buildings, it can also contribute to sustainable development and environmental protection.
