Electric Stainless Steel Condensate Water Recovery System 1-100T/H Capacity ISO9001 Certified

Place of Origin Tai'an, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T/H-100T/H
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Pressure 0.1-1.6MPa Drive Mode Electric, Pneumatic
Material Carbon Steel, Stainless Steel Control Mode Fully Automatic Control, PLC Control
Application Fields Papermaking, Chemical Industry, Food Industry, Pharmaceuticals, Grain And Oil Processing, Rubber Industry, Cotton Spinning, Etc. Customization Customization Supported
Recovery Capacity 1-100T/H Certifications ISO9001 Quality System Certification
Highlight

steel condensate water recovery system

,

electric condensate water recovery system

,

electric steam condensate recovery system
Leave a Message
Product Description

Product Description:

The condensate water recovery device has the capability to be customized as either steam-driven or electric-driven based on the individual requirements of the user. The recovered condensate water is suitable for a direct return to the boiler or can be easily diverted to a specific location chosen by the user.

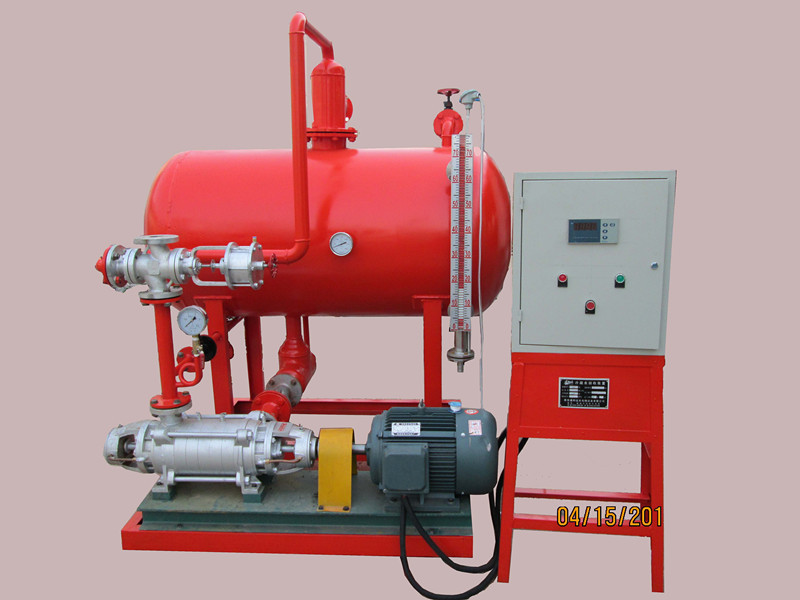

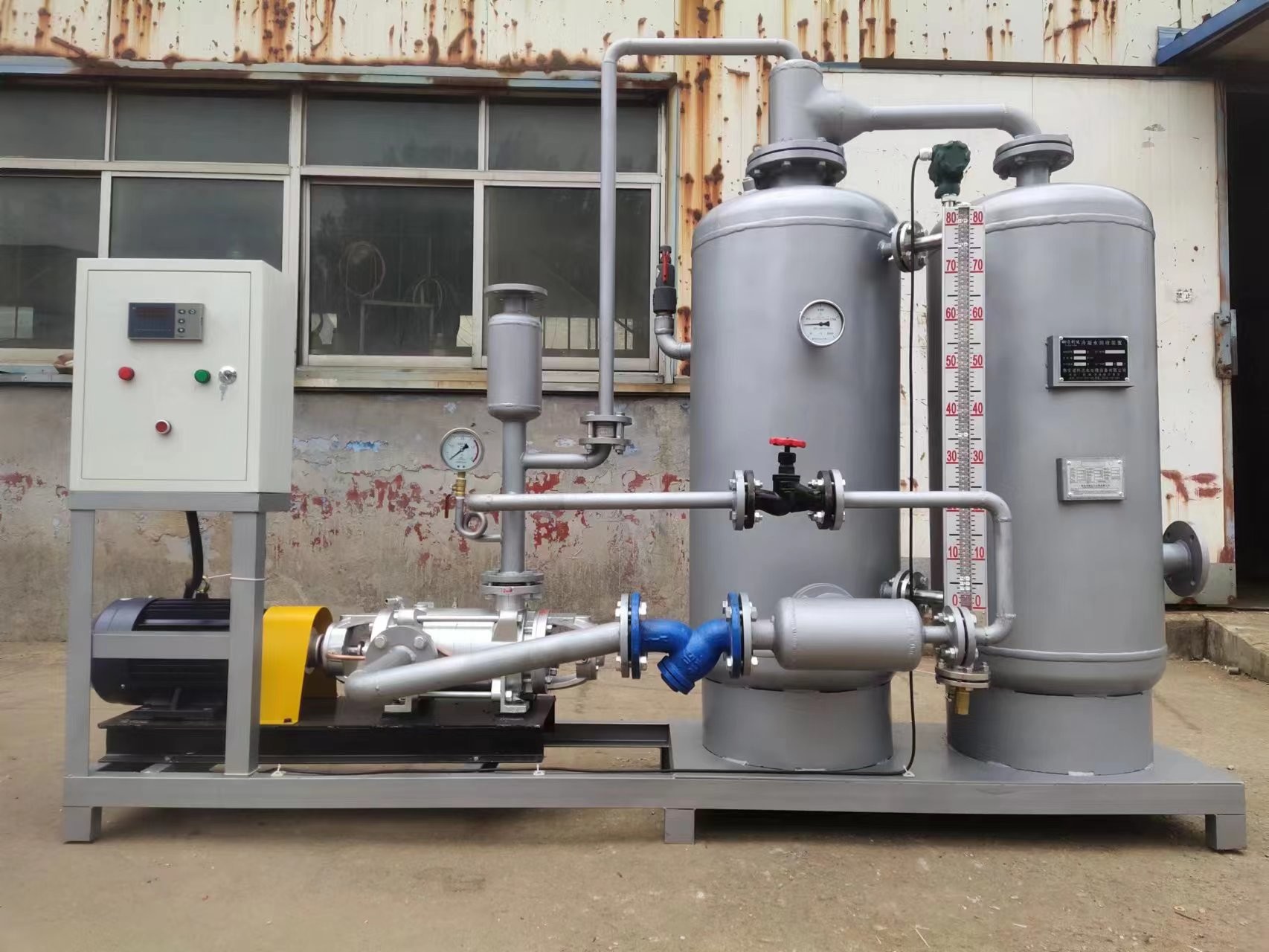

Comprising of numerous components, including a dedicated condensate water recovery pump, motor, recovery tank, cavitation elimination device, liquid level sensor, magnetic flip liquid level gauge, pressure gauge, filter, pressure regulating valve, blowdown valve, control panel, and others, the condensate water recovery device is an essential addition to minimize water waste.

For the recovery of steam condensate water, the steam enters the tank through a steam trap where the steam and water are separated, and when the liquid level sensor detects a high liquid level, it immediately sends a signal to the control panel, which activates the condensate water recovery pump. The high-temperature condensate water and the secondary steam move to the pump's cavitation elimination device through the filter and into the water tank, completing the whole process of steam condensate water recovery.

When the liquid level sensor indicates a low liquid level in the tank, the control panel receives a low-level signal and deactivates the condensate water recovery pump. The recovery device operates in a fully automated control feature, and dual pumps operate in a backup mode, automatically switching between the two. The device is powered on and ready for operation by simply turning on the power.

Model number Weight Recovery volume Tank diameter Equipment dimensions
TLD-1T/H-A 360kg 1T/H 450 1300*500*1600
TLD-2T/H-A 550kg 2T/H 500 1600*700*1600
TLD-4T/H-A 750kg 4T/H 550 1500*600*1700
TLD-6T/H-A 880kg 6T/H 600 1750*800*1700
TLD-8T/H-A 900kg 8T/H 800 1800*900*2100
TLD-10T/H-A 980kg 10T/H 1000 1900*1100*2200
TLD-2T/H-B 450kg 2T/H 350 2300*500*1900
TLD-4T/H-B 800kg 4T/H 450 2700*1100*2000
TLD-6T/H-B 880kg 6T/H 550 2900*1200*2000
TLD-8T/H-B 1000kg 8T/H 800 3200*1300*2100



Features:

Anti-cavitation: Preventing cavitation is an essential aspect of many industrial processes. Cavitation is the formation of vapor-filled bubbles in a liquid. These bubbles then collapse, generating high-pressure waves that can erode materials and cause damage. Anti-cavitation measures are implemented to prevent the formation and collapse of these destructive bubbles.

Energy-saving: In today's society, energy conservation has become a top priority. Energy-efficient technologies and products help reduce waste and cut down on expenses. From lighting to transportation, energy-saving practices can be implemented in a variety of areas. These practices not only benefit your wallet but also the environment by reducing the amount of energy needed to sustain our daily lives.

Environmentally friendly: Environmental concerns continue to grow, prompting many individuals and businesses to adopt environmentally-friendly practices and products. These practices aim to minimize harm to the environment, reduce waste, and conserve natural resources. Alternative energy sources, recycling, and sustainable agriculture are just a few examples of environmentally-friendly measures that can be taken to help ensure a healthier future for our planet.



Applications:

Improved Water Recovery Technology for Industrial and Civil Purposes

The technology of closed-loop condensate water recovery is widely used in various industrial enterprises that require steam heating systems. These industries include papermaking, chemical, petroleum, printing and dyeing, textile, brewing, rubber, and more. The system is an efficient way to collect and recover condensate water by reusing it in a closed loop system.

In addition to industrial applications, this technology can also be applied in other civil buildings like hotels and hospitals. By efficiently converting condensate water generated from indirect heat exchange systems, it replaces traditional open condensate water tanks with a closed-loop recovery system. This product greatly improves the efficiency of water usage, and minimizes water waste.

Aside from its environmental benefits, the closed-loop condensate water recovery system is also very cost-effective for industries and saves energy by recycling the water through the heating system. It reduces the need to replace water in waste streams, which helps to reduce operating costs significantly.

Overall, the closed-loop condensate water recovery system is a modern and effective solution for both industrial and civil buildings. By promoting the efficient use and conservation of water, it helps support sustainable development and protect our planet for future generations.
